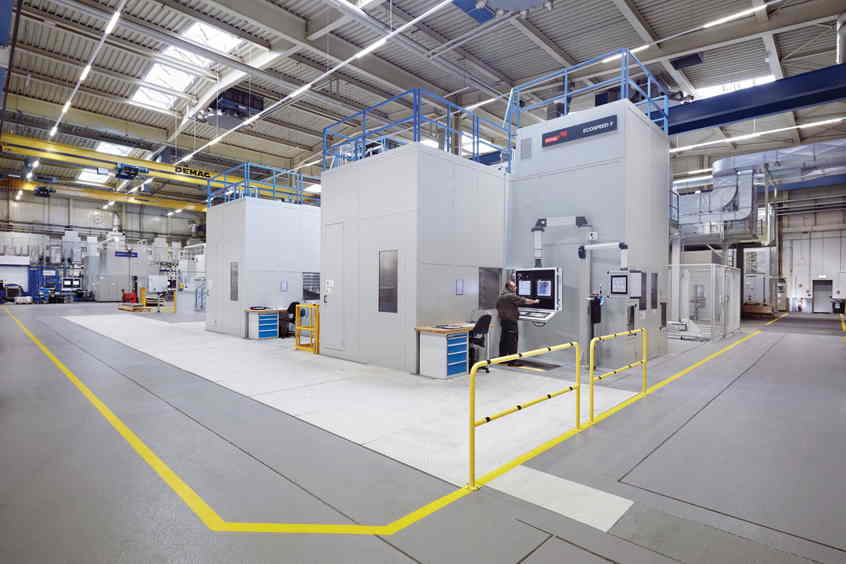

Premium AEROTEC has installed a Starrag ECOSPEED F 2040 Starrag manufacturing system at its Varel plant.

Starrag flexible manufacturing system ECOSPEED F 2040 successfully implemented at Premium AEROTEC

Starrag machining centres with parallel kinematics have proven themselves a worthy addition to one of Europe's most advanced machine pools. This was reason enough for the aircraft supplier Premium AEROTEC to opt once more for highly dynamic five-axis simultaneous cutting with a tripod head for their plant in Varel. This increasingly revolutionary technology is also used in the new ECOSPEED F 2040 Starrag manufacturing system, which comprises two linked machining centres.

For Premium AEROTEC, Europe's biggest aircraft manufacturer, cutting pocket corners with an only slightly inclined land is a routine task that requires the angular position to be changed. While standard fork-type milling heads typically make huge swivel movements to do this, the tripod heads used in the ECOSPEED have significantly faster and more dynamic machining capabilities. Due to these advantages, there are now 13 ECOSPEED centres in use in Varel.

"In addition to their reliability, it was the high overall dynamism of the ECOSPEED machines that won us over", explains Christian Welter, Head of Large-Part Production at Premium AEROTEC. "This is why we chose two ECOSPEED F 2040 machines as our latest investment, which have been linked to create a flexible manufacturing system". This is the newest highlight of Hall 8, where Starrag machining centres with a drive power of 120kW currently take centre stage. An angled milling head that can be changed automatically now enables aluminium workpieces measuring up to four metres long to be machined on the FMS — not just completely but in a single clamping position too.

Linked systems are the preferred choice at the Varel plant. "We want to keep set-up separate from actual machining", says Welter. "And this works extremely well with the new ECOSPEED F 2040 FMS, where we have operators work at separate set-up stations". The new flexible manufacturing system (FMS) consists of two ECOSPEED F 2040s, a conveyor system with double loading trolley, a ground-level set-up point and storage for machine pallets measuring 2,000mm x 4,000mm. The machining centres operate at a nominal output of 120kW and a nominal speed of 30,000rpm. The duo enables highly dynamic five-axis simultaneous machining with up to 1-g acceleration and a maximum jolt of 250m/s3. The FMS boasts an angled milling head with an HSK A63/80 interface. This head can be changed automatically and receives tools from the tool change system automatically too. The angled milling head also carries out cutting and drilling operations, which used to be done on a machine supplied by a competitor of Starrag. To keep the footprint small, save space and facilitate maintenance, auxiliary units and control cubicles are installed on a peripheral platform above the conveyor system.

But what is it that is particularly appealing about this latest investment, especially in the context of the Starrag claim "Engineering precisely what you value"? For Welter, the principal advantage is the level of performance that can already be seen from this highly dynamic pairing, despite the fact that it has only recently been introduced as part of series production — resulting in a 10 to 15% reduction in running time in comparison to older ECOSPEED systems.

Press release issued by Starrag UK on March 17, 2020
