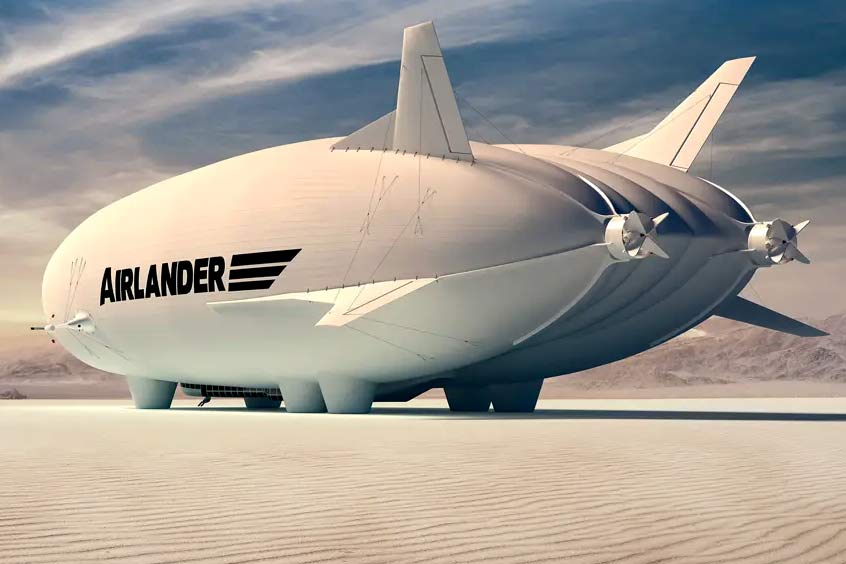

HAV Airlander 10

Lift typeLighter than air
Construction typeFactory-built
Control typePiloted
Engine typePiston, Diesel, Electric, Hybrid
ApplicationCargo, Surveillance
Search for other aircraft programs with these properties on the Aircraft Programs directory page.

Subscribe today
and log in for unlimited access

Carbon fibre and glass fibre composite structures are used for the rigid elements of the 45.5 m long aircraft, including the fins and payload module.

The hull is made of a laminated fabric consisting of multi-layered Vectran weave, Tedlar, Mylar and polyurethane, and fills with helium.

The landing gear is fully retractable in flight, and the air-cushion landing system comprises of hover skirts on the underside of the outer hulls that also provide amphibious capability.

A wheeled, casting ground cradle supports the fuel tank and there is a stowable mooring mast.

Fibre optic control systems are used throughout. The low-pressure pneumatic system powers the flight control actuators and provides low susceptibility to lightning strike and electromagnetic interference. There is a dual-channel, optically signalled flight control system, plus pressure control by multiple airbags fore and aft in each of the two outer hulls.

Type variants

Variant Launch/First flight Production end
HAV Airlander 10 2012 / 2012 Hybrid airship, originally built for US Army's Long Endurance Multi-intelligence Vehicle (LEMV) programme.
