Rising Demand for High-Speed Graphite Machining in Mould Making

In practical CNC operations, graphite is notoriously abrasive. Its granular structure acts like sandpaper, continuously rubbing against the cutting edges during high-speed milling. This abrasive action generates massive amounts of fine, hazardous dust. Without proper management, this dust clogs the tool flutes, causes edge chipping or catastrophic tool breakage, and degrades machining stability. These issues worsen at high spindle speeds and aggressive feed rates, making standard carbide tools highly inefficient due to short tool life and poor surface quality.

This challenge is more critical than ever as the mould industry shifts toward micro-structures, mirror-finish surfaces, and complex, curved profiles. Sectors like automotive manufacturing, consumer electronics tooling, and aerospace components require consistent surface roughness and tight dimensional tolerances over long production runs. This trend has heavily accelerated the market demand for specialised, high-performance graphite end mills.

To stay competitive, mould manufacturers and tool suppliers must find ways to extend tool life, stabilise cutting, and lower costs during high-speed graphite milling. This shared industry challenge drove the development of SAMHO's new generation of advanced coated cutting tools.

Nano-Diamond Coatings Deliver Extreme Wear Resistance

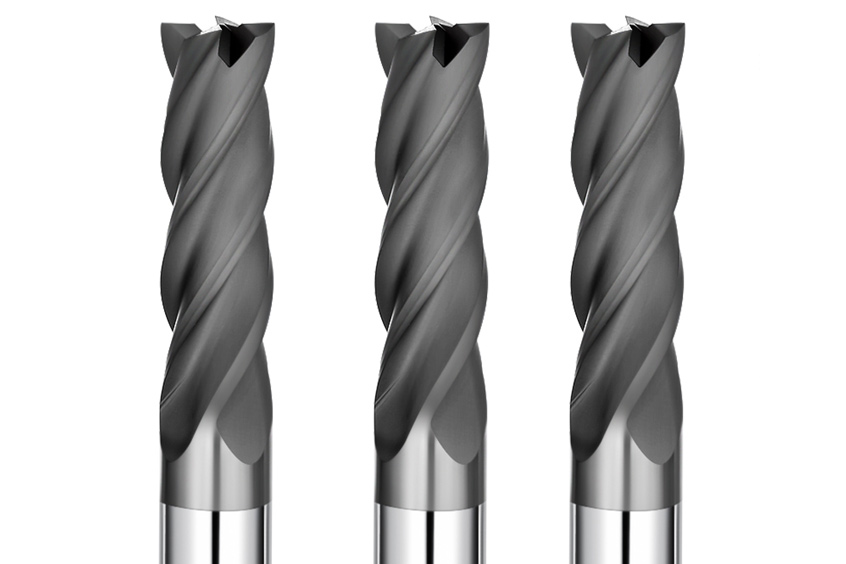

SAMHO's next-generation graphite end mills feature premium nano-diamond coating technology. This process forms a dense, ultra-hard protective barrier over the substrate, isolating the carbide base from abrasive graphite particles. The coating achieves a hardness of up to 8000 HV and features a very low coefficient of friction. This combination drastically lowers cutting resistance and heat accumulation, stopping micro-cracks from forming along the cutting edge. This allows the end mill to retain its sharp geometry and edge toughness during non-stop, high-speed runs.

Additionally, the 6 to 10-micron coating thickness strikes the perfect balance between wear resistance and edge sharpness. It provides robust protection for the underlying carbide without rounding or dulling the cutting edge. Maintaining this balance is vital for precision mould and EDM electrode machining, where parts require both a long tool life and strict dimensional tolerances.

Real-world machining tests show that under identical cutting parameters, SAMHO's diamond coated end mills outlast and outperform tools with traditional coatings. By reducing tool change frequency and costly machine downtime, they boost overall throughput and process stability, making them the go-to choice for high-precision graphite shops.

Optimised Tool Geometry Engineered for High-RPM Machining

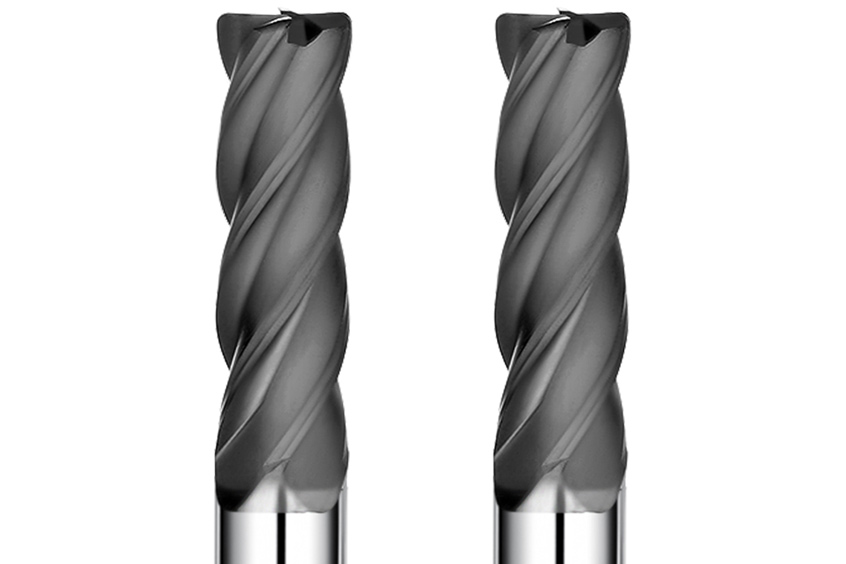

SAMHO has systematically optimised the macro and micro-geometries of this end mill series specifically for graphite. By refining the helix and rake angles, these tools ensure smoother shearing actions, reducing cutting forces and impact loads at high speeds. Precision-ground cutting edges provide a "light cutting" action that prevents material tearing and micro-chipping on the workpiece.

Dust management is also heavily improved. The specialised flute design quickly evacuates fine graphite dust from the cutting zone, eliminating secondary tool wear and clogging. This feature is crucial during long, continuous runs; packed dust degrades the surface finish and accelerates tool failure.

Finally, SAMHO engineered these tools to thrive in high-RPM spindle environments. They maintain excellent dynamic balance at extreme speeds, dampening vibration and chatter. This ensures reliable dimensional accuracy and an immaculate surface finish when milling complex mould cavities and intricate electrodes.

By combining optimised tool geometry with premium nano-diamond coatings, SAMHO graphite end mills deliver unmatched stability, extended tool life, and superior surface quality, meeting the high-efficiency demands of modern mould making and EDM electrode processing.

Proven Performance: Internal Testing and Extended Tool Life

In a machine shop, tool life and stability are the only metrics that truly matter. To prove the real-world performance of our end mills, SAMHO conducted extensive comparative testing in both our internal labs and at active customer sites. These tests covered a wide range of graphite densities and typical EDM electrode machining cycles.

Our testing simulated real-world production: high spindle speeds, continuous dry machining, and aggressive feed rates. Under identical parameters, SAMHO's nano-diamond-coated tools showed a massive advantage over traditional carbide tools. They retained their edge sharpness and geometric integrity far longer during continuous operation.

Test results confirmed that our series effectively delays edge rounding and chipping. This drastically reduces downtime for tool changes and stabilises the entire production cycle. In specific field tests, tool life increased by more than 30%. Because the tools maintained surface finish consistency even after hours of milling, the workload for secondary polishing was significantly reduced.

Customer feedback from the field validates these results. Especially in batch electrode processing and complex surfacing, SAMHO tools deliver superior dimensional control and a lower total cost per part.
