AIRCRAFT PROGRAM
| Lift type | Fixed wing | ||
| Construction type | Factory-built | ||
| Control type | Piloted | ||
| Engine type | Turboprop | ||
| Application | Business, Touring | ||
| Final assembly | Nantes (Atlantique) | ||
| Search for other aircraft programs with these properties on the Aircraft Programs directory page. | |||
Subscribe today
and log in for unlimited access

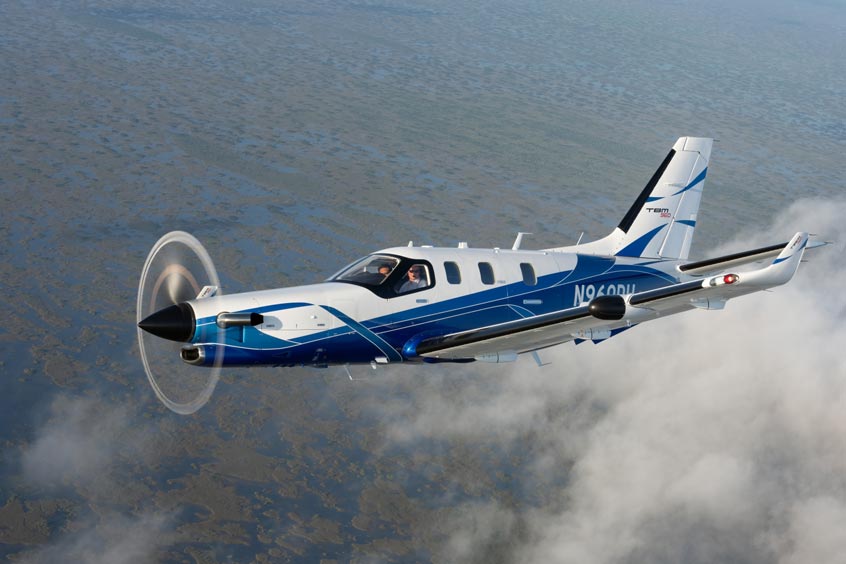

Low wing single-engine turboprop aircraft for up to 6 passengers.
| Variant | Launch/First flight | Production end | |
| Daher TBM700 | 1987 / 1988 | 2005 | Baseline variant. |
| Daher TBM850 | 2004 / 2005 | 2013 | Upgraded variant with engineering designation TBM700N, includes TBM MMA surveillance variant. |
| Daher TBM900 | 2014 / 2014 | 2016 | Variant of TBM700N, with redesigned tailfin and added winglets. |
| Daher TBM930 | 2015 / 2015 | 2019 | Avionics upgrade of TBM900 with redesigned seating. |
| Daher TBM910 | 2017 / 2017 | Upgraded avionics version of TBM900 (which it replaced). | |
| Daher TBM940 | 2019 / 2019 | Upgraded TBM930 variant (which it replaced), with auto-throttle as standard. | |
| Daher TBM960 | 2022 / 2022 | Upgraded engine variant, to replace TBM940. |
View full news archive for the Daher TBM910/960.
| Daher | News |
Other aircraft programs: Daher / Airbus / Safran EcoPulse
| Materials | Metals (1) |
| Components | Sensors, Transducers & Detectors (1) Windows & Glass (1) |
| Airframe Systems | Landing Assemblies (2) Weapons Systems (1) |
| Avionics | Avionic Components (1) Communications (Airborne) (1) Imaging and Visual Systems (3) Indicators and Instruments (2) Navigation Aids (Airborne) (2) Warning Systems (1) |
| Power Systems | Electrical Power Systems (2) Engines (1) Rotors & Propellers (1) |
| Constellium Issoire | Analysis | News | Aluminium: Flat-rolled aluminium products |
| Garmin International | Analysis | News | Magnetometers: Two GMU 44 magnetometer (TBM910/940) |
| Vision Systems Aeronautics | Analysis | Windows: Electrically dimmable windows (TBM960) |
| Aerostar SA | Analysis | Aircraft Landing Gear: main and nose landing gears |
| Parker Aerospace Aircraft Wheel & Brake | Analysis | News | Aircraft Wheels: Main and nose wheels; Brake System Components: Main brakes, master brake cylinder and park brake valve; Aircraft Wheels: (TBM850/900/930/940); Hydraulic Brakes: Hydraulic disc brakes (TBM850/900/930/940) |
| Thales AVS France | Analysis | Surveillance/Air Defense Radar: Thales I-Master radar (TBM MMA) |
| Garmin International | Analysis | News | Satellite Receivers: Optional GDL 69A SXM datalink weather receiver (TBM910/940) |
| Garmin International | Analysis | News | Transceivers: GDL 60 data transmitter (TBM960); Onboard Intercom Systems: GMA 1360D digital audio controller with integrated marker beacon receiver (TBM910); GMA 36 audio controller with integrated marker beacon receiver (TBM940); Radar Transponders: GTX 345 Mode S transponder (TBM910/940); Airborne Communication Systems: Flight Stream 510 (TBM910); Flight Stream 210 (TBM940); Radio Communications Equipment: Optional GSR 56 datalink with satphone and WX weather (TBM910/940); Two GIA 63W NAV/COM/ILS/WAAS GPS (TBM910/940) |
| Garmin International | Analysis | News | Weather Mapping Radar: Optional GWX 70 weather radar (TBM910/940); GWX 8000 doppler weather radar (TBM960) |
| L3Harris Technologies (WESCAM) | Analysis | Airborne Reconnaissance Infrared: MX-15 electro-optical and infrared cameras (TBM MMA) |
| Teledyne FLIR (was FLIR Systems, Inc.) | Analysis | FLIR Systems: Star SAFIRE 380-HD (TBM MMA) |
| Garmin International | Analysis | News | Electronic Flight Instrument Systems: G3000 suite, features HomeSafe emergency autoland system, icing protection system, Electronic Stability and Protection (ESP) and the Under-speed Protection (USP) systems, and Emergency Descent Mode (EDM) function (TBM930/940/960) ; Radar/Radio Altimeters: Optional GRA 55 radar altimeter (TBM910/940); Electronic Flight Instrument Systems: G1000 NXi flight deck (TBM900/910); Attitude and Heading Reference Systems: GRS 79 AHRS (TBM910); GRS 77 AHRS (TBM940); Air Data Computers: GDU 72B air data computer (TBM910); GDU 74B air data computer (TBM940) |
| Mid-Continent Instruments Co. | Analysis | Attitude Indicators: MD302 SAM backup (TBM910) |
| Garmin International | Analysis | News | Collision Avoidance Systems/TCAS: Optional GTS 820 TCAS (TBM910/940) |
| Astronics Advanced Electronic Systems (AES) | Analysis | News | Power Distribution Equipment: Primary power distribution system |
| Hartzell Engine Technologies LLC | Analysis | Alternators: ES-10024B-5 standby alternator |
| Pratt & Whitney Canada | Analysis | News | Turboprop Engines: PT6A-66D (TBM850/930) (PT6A-67 Series - Daher TBM910 - PT6A-66D; Daher TBM940 - PT6A-66D; Daher TBM960 - PT6E-66XT ) |
| Hartzell Propeller | Analysis | News | Composite Propellers: HC-E5N-3C1/NC8334K1 five-blade propeller (TBM850); five-blade Raptor composite propeller (TBM960) |
