AIRCRAFT PROGRAM
Boeing F/A-18 Super Hornet

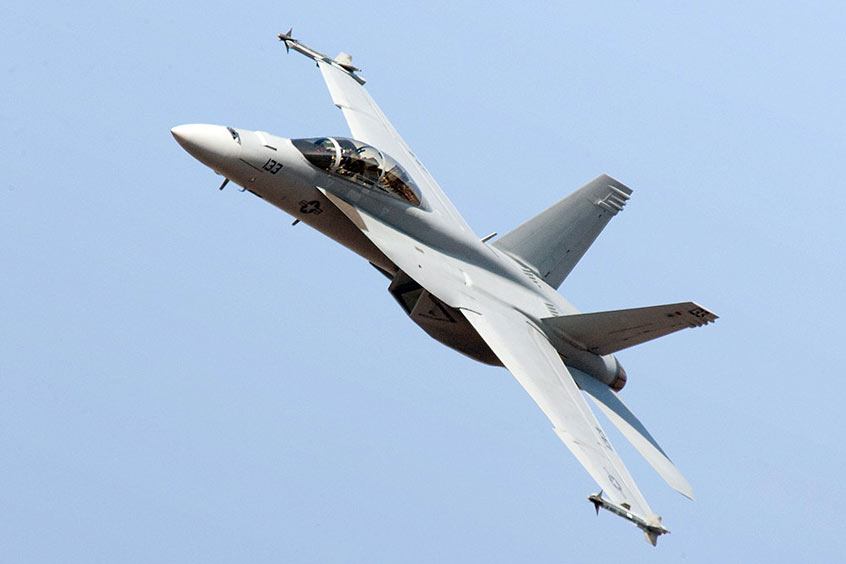

Photo: Boeing

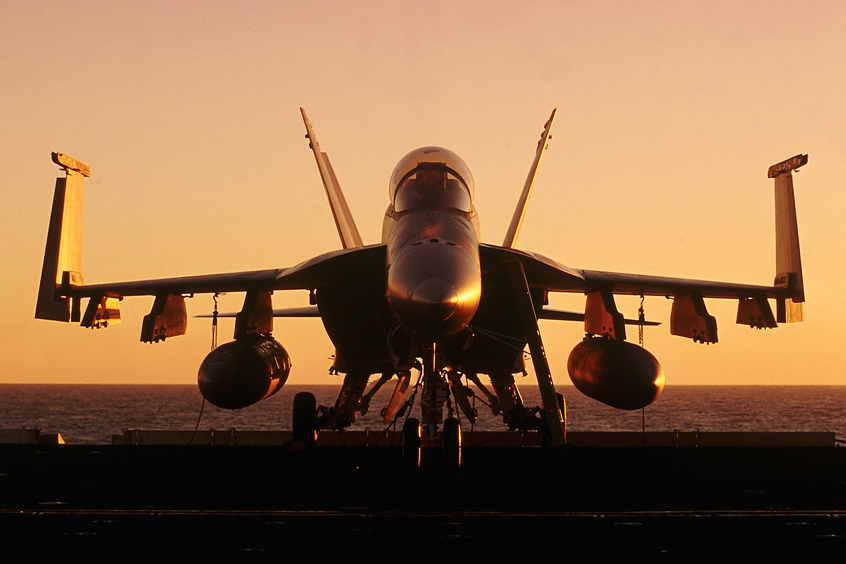

Photo: Boeing
Lift type Fixed wing
Construction type Factory-built
Control type Piloted
Engine type Turbofan
Application Attack, Fighter
Final assembly
St Louis (Lambert International)
Search for other aircraft programs with these properties on the Aircraft Programs directory page.
Subscribers can download an Index PDF report about the Boeing F/A-18 Super Hornet. It includes contact details for suppliers, with cross-references by category and country, and is updated every day!
If you are a subscriber, then please
log in to access your copy of the report. If not, then why not take advantage of our cost-effective
subscription rates ...
Multirole fighter with twin General Electric turbofan engines.
Design and initial production by McDonnell Douglas, now manufactured by Boeing and in service with military in Australia, India, Kuwait and United States.
Graphite/epoxy fuselage (Northrop Grumman), doors, trailing edge flaps, inter-spar skin panels and tail skin (CASA, now Airbus), light alloy wing and aluminium honeycomb core tail. Titanium firewall surrounds twin General Electric turbofan Engines.
Aircraft, with twin tail fins, large wings and leading edge root extension has range of up to 1,660 n miles and speed of Mach 1.6+, maximised by conformal fuel tanks mounted on shoulders of aircraft. The F/A-18E Super Hornet uses 42% less parts than the original F/A-18 Hornet.
Single seat F/A-18E and tandem F/A-18F pilot(s) in upward open canopy cockpit, face an advanced cockpit system with large area (10x19 inch) colour display screen and twin monochrome screens. Joint helmet mounted cueing system (Collins) combined with an advanced network infrastructure, increases the aircraft’s ability to communicate with both ground and airborne fleets.
Type variants
Variant
Launch/First flight
Production end
Boeing F/A-18E/F Super Hornet
1995 / 1995
Multirole fighter, single-seat/two-seater variants.
Boeing F/A-18G Growler
2003 / 2006
Electronic warfare variant of F/A-18F.
